Bush TR2015

From Sharpfin
Jump to: navigation, search

Introduction

This radio first appeared in late 2006.


Pictures

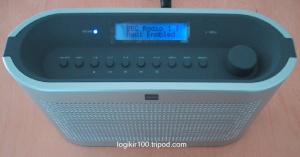

Top

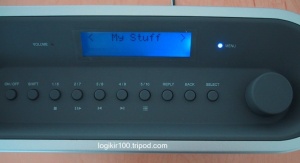

Control panel

Photos reproduced with the permission of Logikir100.tripod.com


Opening the Bush radio

It is suggested you make a simple 'L' shaped hook from a paper clip. This could then be used to pull out the four plastic plugs which cover the recessed screws.

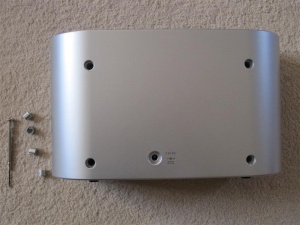

Rear

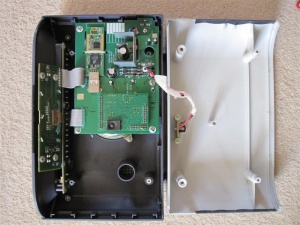

Internal view

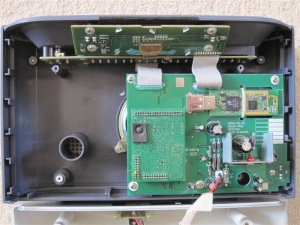

Internal view

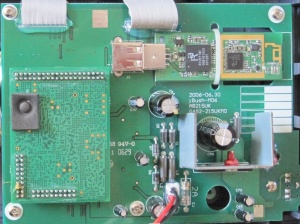

Main PCB

Photos originally provided by Hovis to Logikir100.tripod.com


Firmware

v255-c-106-a-002 - Factory shipped firmware (circa late 2006)

v257-a-756-a-212 - Current official version. (circa end of 2008)


User Manual

http://www.sendspace.com/file/w728cy

Power Supply Unit

The TR2015WIFI radio requires a 7.5V @1.2A DC. However, Bush have chosen to supply a linear unregulated mains power adapter which has an open circuit voltage of 12.3V DC !

A 7.5V @ 1.2A switched mode mains power adapter commonly used with a number of other Reciva radios will work with this radio. DC power plug specifications are: 5.5mm diameter/2.1mm inner diameter/12mm long, centre positive polarity.

References

Reviews:

http://www.adambowie.com/weblog/archive/001862.html

http://www.gadgetspeak.com/gadget/article.rhtm/758/428298/Bush_TR2015WIFI_Wi-Fi_Radio.html
